Bitaxe Replacement Screen
Replacement OLED I2C screen for Bitaxe with presoldered headers. PCB size: 38x12mm Screen size: 26 x 9.5mm Dot matrix: 128 x 32 Pixel size: 0.152 × 0.152 mm Pixel pitch: 0.175...
Order summary
Ready to add this?
Review price, shipping and options before adding it to your cart.
Overview

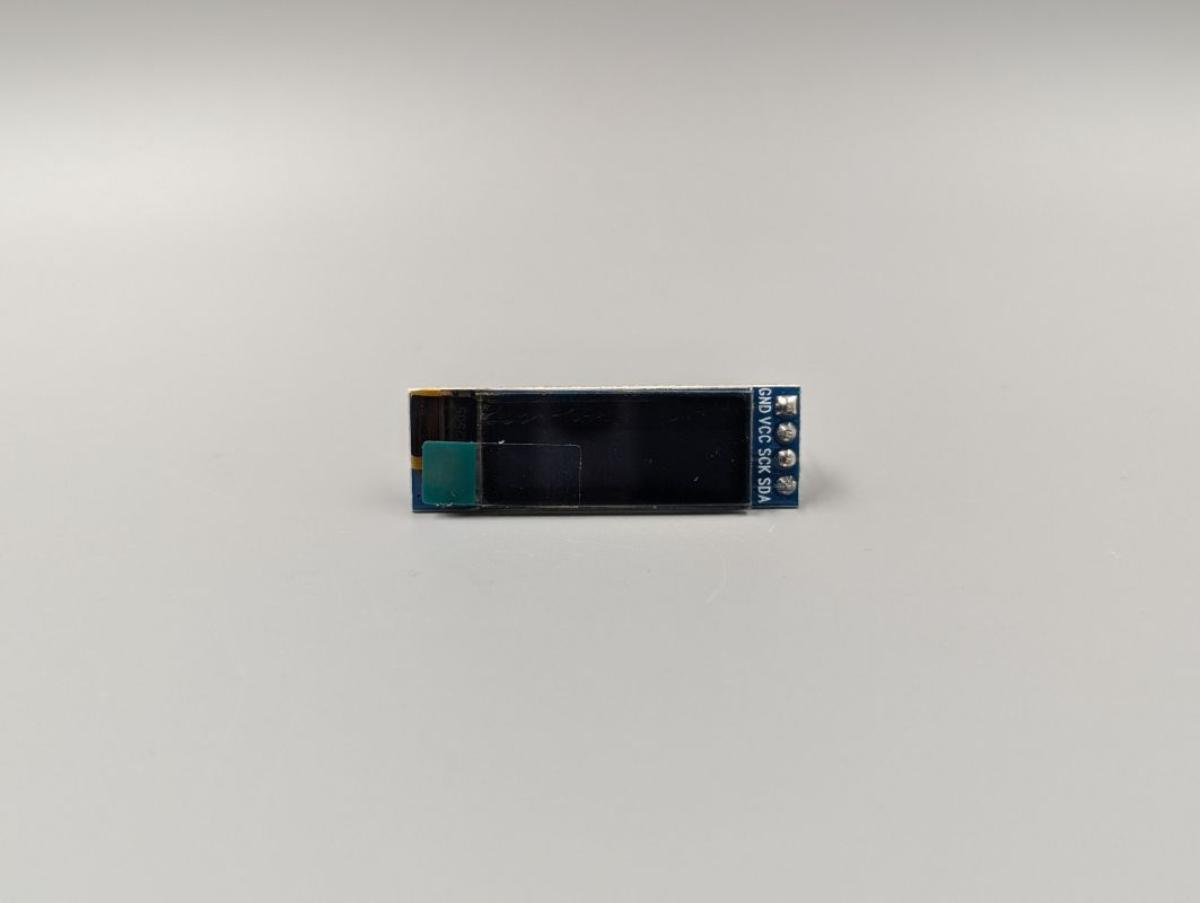

Replacement OLED I2C screen for Bitaxe with presoldered headers.
- PCB size: 38x12mm
- Screen size: 26 x 9.5mm
- Dot matrix: 128 x 32
- Pixel size: 0.152 × 0.152 mm
- Pixel pitch: 0.175 × 0.175 mm
- Display mode: Passive matrix
- Supply voltage: 3.3V – 5V
Details
Replacement OLED I2C screen for Bitaxe with presoldered headers.
Thanks to the high contrast of the display, the display is very easy to read. The pins are self-luminous, and no backlighting is required, which contributes to low energy consumption. This practical display is ideal for use with microcontrollers such as STM32, AVR, DSP, ARM, PLC, TTL logic, and of course the beloved Bitaxe. It is controlled via the I2C interface, which means that only 4 connection pins are required which are presoldered for your convenience.
- PCB size: 38x12mm
- Screen size: 26 x 9.5mm
- Dot matrix: 128 x 32
- Pixel size: 0.152 × 0.152 mm
- Pixel pitch: 0.175 × 0.175 mm
- Display mode: Passive matrix
- Supply voltage: 3.3V – 5V
