Bitaxe Gamma Silent

Bitaxe Gamma 601 is a fully open-source Bitcoin ASIC miner designed to decentralise mining, represents the 5th major revision of the Bitaxe series. Provides the same hashpower as Antminer S5 released a decade ago (32 chips) using only a single chip.

Test your luck to hit the 3.125 BTC Bitcoin block by solo mining or receive sats daily by mining in a pool.

Specification:

• Bitaxe Gamma has the most efficient 5 nanometer chip – BM1370 from Bitmain Antminer S21 Pro with efficiency rated @ ∼15 J/TH and hashrate @ ∼1.1TH/s

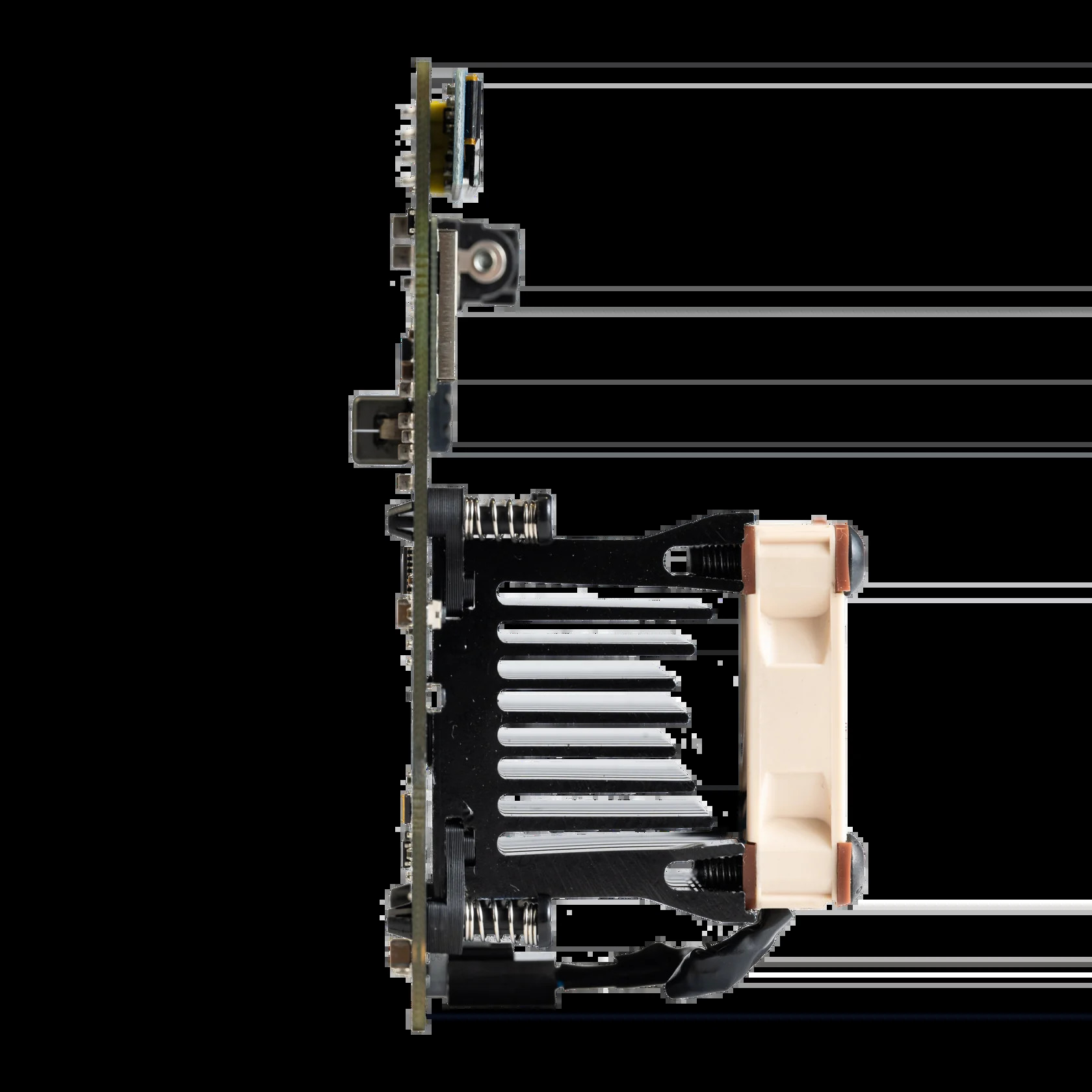

• Northbridge cooler: Comes with 3d printed adapter to attach to Bitaxe, cools down the Gamma properly
• Noctua Fan: Noctua NF-A4x20 PWM 5V 40x20mm fan from a well known Austrian brand – slim, quiet and powerful

Optional Bitaxe stands:

• Honeybadger: 3d printed frame with stainless steel backplate which works as additional heatsink. Includes 2 thermopads behind ASIC chip & TPS546 element.
• Orange/Black: 3d printed stand to hold the heavier and further outreaching build of the silent
• Orange with possibility for a second fan: 3d printed honeycomb profile where there is a possibility to attach a second fan on the backside of the stand

Installation guide DEnglish: https://youtu.be/InfDHmFQcsE

Installation Guide Dutch: https://youtu.be/cBC8WGWFl0w

Overclocking: https://youtu.be/F5zwmrUfzIs

GitHub: https://github.com/skot/bitaxe

Using WantClue WebFlasher to update the BitAxe: https://www.youtube.com/watch?v=EgUtT2aWlIg

Link to the webflasher: https://bitaxeorg.github.io/bitaxe-web-flasher/

Thermal past and overheat issue solution:

https://rumble.com/v6yacoa-how-to-fix-bitaxe-gamma-overheating-replace-thermal-paste-and-reconfigure-s.html
